Elevation Type 365 485
Extension Type 6"Carbon 9"Carbon 6"Carbon 9"Carbon
Mass Weight 199g 217g 207g 226g
Aperture Distance （APD） MAX 180mm
MIN 92mm		 MAX 257mm
MIN 92mm		 MAX 180mm
MIN 92mm		 MAX 257mm
MIN 92mm
Elevation Adjustment Model Screw Drive with No-Lock Quick Adjust Function
Length 93mm
(approx.3.65"）		 123mm
(approx.4.8"）
Adjustable Range approx.67mm approx.97mm
Adjustment Increments 1/24" per revolution （approx.1mm）
1/480" per click （approx.0.05mm）
Tilt Adjustment adjustable
Windage Adjustable Range approx.10mm
Adjustment Increments 1/24"  per revolution （approx.1mm）
1/480" per click （approx.0.05mm）
Compatible Scopes No.10-32 threaded scope rods
2nd、3rd Axis adjustable
Extension Length 157mm
(approx.6"）		 233mm
(approx.9"）		 157mm
(approx.6"）		 233mm
(approx.9"）
Adjustable Range 3.5"
(approx.89mm）		 6.5"
(approx.165mm）		 3.5"
(approx.89mm）		 6.5"
(approx.165mm）
Adjustment Increments 1/2"
(approx.12.7mm）		 1/2"
(approx.12.7mm）		 1/2"
(approx.12.7mm）		 1/2"
(approx.12.7mm）
Material Elevation 6000 series aluminum alloy
Windage Unit 6000 series aluminum alloy
Extension Carbon Fiber
Colors Black, Silver, Blue, Red, Gold, Pink,
Green, Orange		 Black, Silver
RH/LH available
Release Date 2019
Included Accessories Soft Sight Case
Offset Bracket
No.10-24 mount screws
No.10-32 hex nut, adjustment washers
Hex Wrenches　1.5mm／2mm／3mm
Instructions Sheet
Warranty card

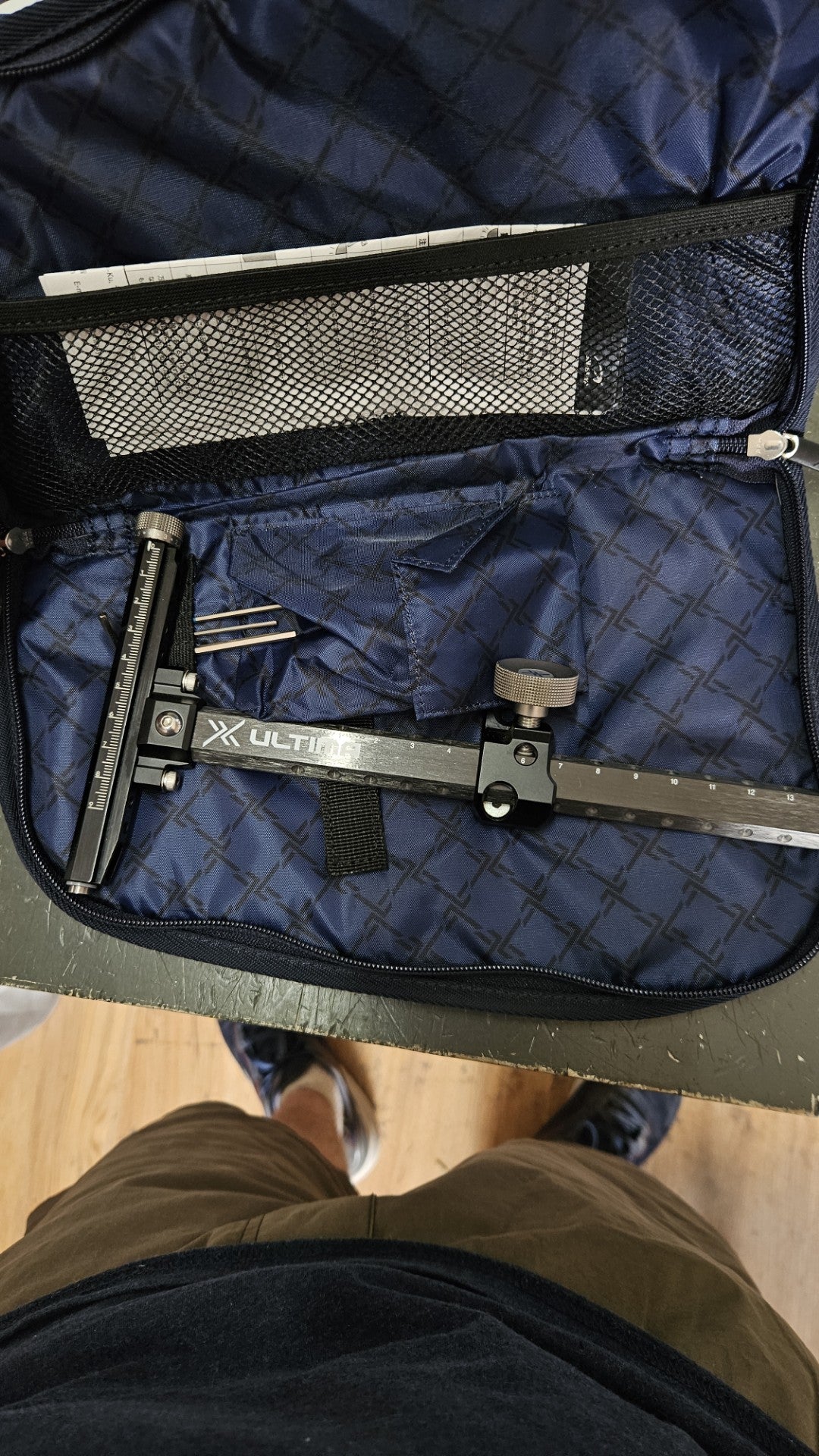

Shibuya Ultima CPX II 485-9 LH Black

$540.00
Only 2 left



Elevation Type 365 485
Extension Type 6"Carbon 9"Carbon 6"Carbon 9"Carbon
Mass Weight 199g 217g 207g 226g
Aperture Distance （APD） MAX 180mm
MIN 92mm		 MAX 257mm
MIN 92mm		 MAX 180mm
MIN 92mm		 MAX 257mm
MIN 92mm
Elevation Adjustment Model Screw Drive with No-Lock Quick Adjust Function
Length 93mm
(approx.3.65"）		 123mm
(approx.4.8"）
Adjustable Range approx.67mm approx.97mm
Adjustment Increments 1/24" per revolution （approx.1mm）
1/480" per click （approx.0.05mm）
Tilt Adjustment adjustable
Windage Adjustable Range approx.10mm
Adjustment Increments 1/24"  per revolution （approx.1mm）
1/480" per click （approx.0.05mm）
Compatible Scopes No.10-32 threaded scope rods
2nd、3rd Axis adjustable
Extension Length 157mm
(approx.6"）		 233mm
(approx.9"）		 157mm
(approx.6"）		 233mm
(approx.9"）
Adjustable Range 3.5"
(approx.89mm）		 6.5"
(approx.165mm）		 3.5"
(approx.89mm）		 6.5"
(approx.165mm）
Adjustment Increments 1/2"
(approx.12.7mm）		 1/2"
(approx.12.7mm）		 1/2"
(approx.12.7mm）		 1/2"
(approx.12.7mm）
Material Elevation 6000 series aluminum alloy
Windage Unit 6000 series aluminum alloy
Extension Carbon Fiber
Colors Black, Silver, Blue, Red, Gold, Pink,
Green, Orange		 Black, Silver
RH/LH available
Release Date 2019
Included Accessories Soft Sight Case
Offset Bracket
No.10-24 mount screws
No.10-32 hex nut, adjustment washers
Hex Wrenches　1.5mm／2mm／3mm
Instructions Sheet
Warranty card
$540.00
